Fastai DL from the Foundations Softmax, NLL, Training, Module, Dataloader, Sampler, Callbacks
Summaries for Building Fastai Funtions from scratch (Lesson 2)
Lesson 2 How to train your model
Loss

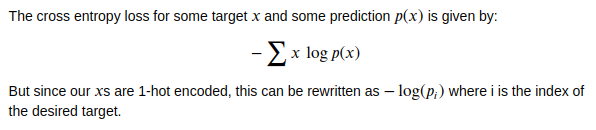

For our Classification task, we will be using Cross Entropy Loss (also called Log Loss) ourselves. We define a simple Linear Model for our task. We will be using the Pytorch functions, as we already implemented those in Lesson 1 :
class Model(nn.Module):
def __init__(self,in_dim,nh,out_dim):
super().__init__()
self.layers = [nn.Linear(in_dim,nh), nn.ReLu(),nn.Linear(nh,out_dim)]
def __call__(self,x):
for i in self.layers: x = l(x)
return x

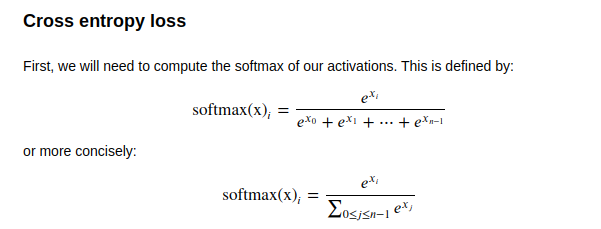

Since we are using Softmax, we need to compute it’s output first :
In practice we need it’s log, the code is simple :
def log_softmax(x) : return (x.exp()/x.exp().sum(-1,keepdim=True))).log()
Using simple log-math
log(a/b) = log(a) - log(b)
Which leads to in pseudo code :
log(x.exp()) - log(x.exp().sum())
We can simplify this log_softmax function, like so :
def log_softmax(x) : return x - x.exp().sum(-1,keepdim=True).log()
Using numpy integer array indexing we can compute our negative log likelihood like so by passing our softmax output :
def negative_log_likelihood(input,target):
return -input[range(target.shape[0]), target].mean()
However we can compute the log of the sum of exponentials in a more stable way to avoid an overflow of big activations, with the LogSumExp trick :
def logsumexp(exp):
a= x.max(-1)[0] #maximum of x(j)
return a + (x-a[:,None]).exp().sum(-1).log()
Updating our softmax again, this leads to :
def log_softmax(x):
return x - x.logsumexp(-1,keepdim=True)
x.logsumexp() is the Pytorch function in this case. In order to compare our function with Pytorch, we can use
test_near(logsumexp(pred), pred.logsumexp(-1))
test_near will throw an AssertionError if they are not equal to each other.
Now we succesfully implemented F.cross_entropy(pred,y_train)
, which is made out of F.log_softmax
and F.nll_loss
The accuracy can be calculated with :
def accuracy(out, yb): return (torch.argmax(out, dim=1)==yb).float().mean()
Training Loop
Basically the training loop repeats over the following steps:
- get the output of the model on a batch of inputs
- compare the output to the labels we have and compute a loss
- calculate the gradients of the loss with respect to every parameter of the model
- update said parameters with those gradients to make them a little bit better
Now we can implement our Training Loop :
for epoch in range(epochs):
for i in range((n-1)//bs + 1):
# slice dataset in batches
start_i = i*bs
end_i = start_i+bs
xb = x_train[start_i:end_i]
yb = y_train[start_i:end_i]
loss = loss_func(model(xb), yb)
loss.backward()
with torch.no_grad():
for l in model.layers:
if hasattr(l, 'weight'):
l.weight -= l.weight.grad * lr
l.bias -= l.bias.grad * lr
l.weight.grad.zero_()
l.bias .grad.zero_()
This looks kind of messy. Since our parameters can all be stored in a model class, we can loop over them and update them easily. However we need to implement a dummy Module first :
Module and improved training loop
class DummyModule():
def __init__(self, n_in, nh, n_out):
self._modules = {}
self.l1 = nn.Linear(n_in,nh)
self.l2 = nn.Linear(nh,n_out)
def __setattr__(self,k,v): #this is called everytime self is assigned
if not k.startswith("_"): self._modules[k] = v # just checks if it doesn't start with _ to avoid calling python _modules recursively
super().__setattr__(k,v) #super class is python object
def __repr__(self): return f'{self._modules}'
def parameters(self):
for l in self._modules.values():
for p in l.parameters(): yield p
for simplicity we can now use the Pytorch Module
class Model(nn.Module):
def __init__(self,layers):
super().__init__() #initalizes self._modules
self.layers = layers
for i,l in enumerate(self.layers) : self.add_module(f'layer_{i}',l)
def __call__():
for layer in self.layers: x = l(x)
return x
now we can call the training more conveniently :
for epoch in range(epochs):
for i in range((n-1)//bs + 1):
# slice dataset in batches
start_i = i*bs
end_i = start_i+bs
xb = x_train[start_i:end_i]
yb = y_train[start_i:end_i]
loss = loss_func(model(xb), yb)
loss.backward()
with torch.no_grad()
for param in model.parameters(): param -= lr * param.grad
We can make it even easier with nn.ModuleList
to recreate nn.Sequential
.
class SequentialModel(nn.Module):
def __init__(self, layers):
super().__init__()
self.layers = nn.ModuleList(layers)
def __call__(self, x):
for l in self.layers : x = l(x)
return x
Let’s replace our previous manually coded optimization step:
with torch.no_grad():
for p in model.parameters(): p -= p.grad * lr
model.zero_grad()
and instead use just:
opt.step()
opt.zero_grad()
Optimizer
By creating our own Optimizer Function
class Optimizer():
def __init__(self, params, lr=0.5): self.params,self.lr=list(params),lr
def step(self):
with torch.no_grad():
for p in self.params: p -= p.grad * lr
def zero_grad(self):
for p in self.params: p.grad.data.zero_()
PyTorch already provides optimizers, like optim.SGD and optim.Adam, which also handles more stuff.
Now we can further simplify our Training loop :
for epoch in range(epochs):
for i in range((n-1)//bs + 1):
start_i = i*bs
end_i = start_i+bs
xb = x_train[start_i:end_i]
yb = y_train[start_i:end_i]
pred = model(xb)
loss = loss_func(pred, yb)
loss.backward()
opt.step()
opt.zero_grad()
When implementing stuff yourself, it’s always good to put some tests in. Like checking the accuracy for example.
Dataset and DataLoader
Dataset
We can further simplify this by converting
xb = x_train[start_i:end_i]
yb = y_train[start_i:end_i]
with a Dataset Class :
class Dataset():
def __init__(self,x,y): self.x,self.y = x,y
def __len__(self): return len(self.x)
def __getitem__(self,i): return self.x[i], self.y[i]
train_ds,valid_ds = Dataset(x_train, y_train),Dataset(x_valid, y_valid)
Now we can call our loop like this :
for e in range(epochs):
for i in range((n-1)//bs+1):
x,y = train_ds[i*bs:i*bs+bs]
pred = model(x)
loss = loss_func(pred,y)
loss.backward()
opt.step()
opt.zero_grad()
DataLoader
We can make this even easier with a Dataloader to iterate over our Dataset automatically.
class Dataloader :
def __init__(self, ds, bs): self.ds,self.bs = ds,bs
def __iter__(self):
for i in range(0, len(self.ds), self.bs): yield self.ds[i:i+self.bs]
yield
is used, in order to produce a series of values over time. We can use the Dataloader with next and iter :
train_dl = DataLoader(train_ds, bs)
valid_dl = DataLoader(valid_ds, bs)
xb,yb = next(iter(valid_dl))
now we can put our train loop in a wonderful function :
def fit():
for epoch in range(epochs):
for xb,yb in train_dl:
pred = model(xb)
loss = loss_func(pred, yb)
loss.backward()
opt.step()
opt.zero_grad()
Sampler
In order to have a random order, we can implement a Sampler class :
class Sampler():
def __init__(self, ds, bs, shuffle=False):
self.n,self.bs,self.shuffle = len(ds),bs,shuffle
def __iter__(self):
self.idxs = torch.randperm(self.n) if self.shuffle else torch.arange(self.n)
for i in range(0, self.n, self.bs): yield self.idxs[i:i+self.bs]
Now we can change our DataLoader to include our sampler as an argument.
def collate(b):
xs,ys = zip(*b)
return torch.stack(xs),torch.stack(ys)
class DataLoader():
def __init__(self, ds, sampler, collate_fn=collate):
self.ds,self.sampler,self.collate_fn = ds,sampler,collate_fn
def __iter__(self):
for s in self.sampler: yield self.collate_fn([self.ds[i] for i in s])
collate
stacks tensors, we can also add padding, etc …
PyTorch does the same thing as well, but also adds num_workers
which can be used to start several threads and run more efficiently :
train_dl = DataLoader(train_ds, sampler=train_samp, collate_fn=collate,num_workers=num_workers)
valid_dl = DataLoader(valid_ds, sampler=valid_samp, collate_fn=collate,num_workers=num_workers)
With Val Set
Using best practices we should add a val set to store our best model and test during training :
def fit(epochs, model, loss_func, opt, train_dl, valid_dl):
for epoch in range(epochs):
# Handle batchnorm / dropout
model.train()
# print(model.training)
for xb,yb in train_dl:
loss = loss_func(model(xb), yb)
loss.backward()
opt.step()
opt.zero_grad()
model.eval()
# print(model.training)
with torch.no_grad():
tot_loss,tot_acc = 0.,0.
for xb,yb in valid_dl:
pred = model(xb)
tot_loss += loss_func(pred, yb)
tot_acc += accuracy (pred,yb)
nv = len(valid_dl)
print(epoch, tot_loss/nv, tot_acc/nv)
return tot_loss/nv, tot_acc/nv
I divided it in to a train and val Function for better readability :
def train(model, loss_func, opt, train_dl):
model.train()
for xb,yb in train_dl :
loss = loss_func(model(xb),yb)
loss.backward()
opt.step()
opt.zero_grad()
def val(epoch,model, loss_func, valid_dl):
model.eval()
with torch.no_grad():
total_loss, total_acc = 0.,0.
for xb,yb in valid_dl:
total_loss += loss_func(model(xb),yb)
total_acc += accuracy(model(xb),yb)
iterations = len(valid_dl)
print(epoch, total_loss/iterations, total_acc/iterations)
return total_loss, total_acc, iterations
def fit(epochs,model,loss_func,opt,train_dl,valid_dl):
for epoch in range(epochs) :
train(model,loss_func,opt,train_dl)
loss,acc, nv = val(epoch,model,loss_func,valid_dl)
return loss/(nv), acc/(nv)
Powerful Training Loops with Callbacks
In order to customize out training loop in many ways (regularization techniques, visualization, early stopping,…), we want to be able to do so easily without having to write a huge loop function all the time that is hard to read and update. For this fastai uses something called callbacks :
Databunch
This can be used to store our info and doesn’t have any real logic.
class DataBunch():
def __init__(self, train_dl, valid_dl, c=None):
self.train_dl,self.valid_dl,self.c = train_dl,valid_dl,c
@property
def train_ds(self): return self.train_dl.dataset
@property
def valid_ds(self): return self.valid_dl.dataset
data = DataBunch(*get_dls(train_ds, valid_ds, bs), c) #c is max y value
#further storage wrappers
def get_model(data, lr=0.5, nh=50):
m = data.train_ds.x.shape[1]
model = nn.Sequential(nn.Linear(m,nh), nn.ReLU(), nn.Linear(nh,data.c))
return model, optim.SGD(model.parameters(), lr=lr)
class Learner():
def __init__(self, model, opt, loss_func, data):
self.model,self.opt,self.loss_func,self.data = model,opt,loss_func,data
With our previous training loop modified a bit we can add Callbacks now, :
def one_batch(xb, yb, cb):
if not cb.begin_batch(xb,yb): return
loss = cb.learn.loss_func(cb.learn.model(xb), yb)
if not cb.after_loss(loss): return
loss.backward()
if cb.after_backward(): cb.learn.opt.step()
if cb.after_step(): cb.learn.opt.zero_grad()
def all_batches(dl, cb):
for xb,yb in dl:
one_batch(xb, yb, cb)
if cb.do_stop(): return
def fit(epochs, learn, cb):
if not cb.begin_fit(learn): return
for epoch in range(epochs):
if not cb.begin_epoch(epoch): continue
all_batches(learn.data.train_dl, cb)
if cb.begin_validate():
with torch.no_grad(): all_batches(learn.data.valid_dl, cb)
if cb.do_stop() or not cb.after_epoch(): break
cb.after_fit()
add Callbacks
class Callback():
def begin_fit(self, learn):
self.learn = learn
return True
def after_fit(self): return True
def begin_epoch(self, epoch):
self.epoch=epoch
return True
def begin_validate(self): return True
def after_epoch(self): return True
def begin_batch(self, xb, yb):
self.xb,self.yb = xb,yb
return True
def after_loss(self, loss):
self.loss = loss
return True
def after_backward(self): return True
def after_step(self): return True
Callback Hander
class CallbackHandler():
def __init__(self,cbs=None):
self.cbs = cbs if cbs else []
def begin_fit(self, learn):
self.learn,self.in_train = learn,True
learn.stop = False
res = True
for cb in self.cbs: res = res and cb.begin_fit(learn)
return res
def after_fit(self):
res = not self.in_train
for cb in self.cbs: res = res and cb.after_fit()
return res
def begin_epoch(self, epoch):
self.learn.model.train()
self.in_train=True
res = True
for cb in self.cbs: res = res and cb.begin_epoch(epoch)
return res
def begin_validate(self):
self.learn.model.eval()
self.in_train=False
res = True
for cb in self.cbs: res = res and cb.begin_validate()
return res
def after_epoch(self):
res = True
for cb in self.cbs: res = res and cb.after_epoch()
return res
def begin_batch(self, xb, yb):
res = True
for cb in self.cbs: res = res and cb.begin_batch(xb, yb)
return res
def after_loss(self, loss):
res = self.in_train
for cb in self.cbs: res = res and cb.after_loss(loss)
return res
def after_backward(self):
res = True
for cb in self.cbs: res = res and cb.after_backward()
return res
def after_step(self):
res = True
for cb in self.cbs: res = res and cb.after_step()
return res
def do_stop(self):
try: return self.learn.stop
finally: self.learn.stop = False
Callback Test
class TestCallback(Callback):
def begin_fit(self,learn):
super().begin_fit(learn)
self.n_iters = 0
return True
def after_step(self):
self.n_iters += 1
print(self.n_iters)
if self.n_iters>=10: self.learn.stop = True
return True
These methods are checked for in our one_batch
function and are executed in our training loop.
Callback Simplification
We do on not need to implement each function seperately by using a call function :
def __call__(self, cb_name):
for cb in sorted(self.cbs, key=lambda x: x._order):
f = getattr(cb, cb_name, None)
if f and f(): return True
return False
This allows is to recreate the Calbacks in a better way :
#export
import re
_camel_re1 = re.compile('(.)([A-Z][a-z]+)')
_camel_re2 = re.compile('([a-z0-9])([A-Z])')
def camel2snake(name):
s1 = re.sub(_camel_re1, r'\1_\2', name)
return re.sub(_camel_re2, r'\1_\2', s1).lower()
class Callback():
_order=0
def set_runner(self, run): self.run=run
def __getattr__(self, k): return getattr(self.run, k)
@property
def name(self):
name = re.sub(r'Callback$', '', self.__class__.__name__)
return camel2snake(name or 'callback')
#export
class TrainEvalCallback(Callback):
def begin_fit(self):
self.run.n_epochs=0.
self.run.n_iter=0
def after_batch(self):
if not self.in_train: return
self.run.n_epochs += 1./self.iters
self.run.n_iter += 1
def begin_epoch(self):
self.run.n_epochs=self.epoch
self.model.train()
self.run.in_train=True
def begin_validate(self):
self.model.eval()
self.run.in_train=False
class TestCallback(Callback):
def after_step(self):
if self.train_eval.n_iters>=10: return True
#export
class Runner():
def __init__(self, cbs=None, cb_funcs=None):
cbs = listify(cbs)
for cbf in listify(cb_funcs):
cb = cbf()
setattr(self, cb.name, cb)
cbs.append(cb)
self.stop,self.cbs = False,[TrainEvalCallback()]+cbs
@property
def opt(self): return self.learn.opt
@property
def model(self): return self.learn.model
@property
def loss_func(self): return self.learn.loss_func
@property
def data(self): return self.learn.data
def one_batch(self, xb, yb):
self.xb,self.yb = xb,yb
if self('begin_batch'): return
self.pred = self.model(self.xb)
if self('after_pred'): return
self.loss = self.loss_func(self.pred, self.yb)
if self('after_loss') or not self.in_train: return
self.loss.backward()
if self('after_backward'): return
self.opt.step()
if self('after_step'): return
self.opt.zero_grad()
def all_batches(self, dl):
self.iters = len(dl)
for xb,yb in dl:
if self.stop: break
self.one_batch(xb, yb)
self('after_batch')
self.stop=False
def fit(self, epochs, learn):
self.epochs,self.learn = epochs,learn
try:
for cb in self.cbs: cb.set_runner(self)
if self('begin_fit'): return
for epoch in range(epochs):
self.epoch = epoch
if not self('begin_epoch'): self.all_batches(self.data.train_dl)
with torch.no_grad():
if not self('begin_validate'): self.all_batches(self.data.valid_dl)
if self('after_epoch'): break
finally:
self('after_fit')
self.learn = None
In order to track our stats we will add a third Callback to see them, it will make us of a class that computes these.
class AvgStats():
def __init__(self, metrics, in_train): self.metrics,self.in_train = listify(metrics),in_train
def reset(self):
self.tot_loss,self.count = 0.,0
self.tot_mets = [0.] * len(self.metrics)
@property
def all_stats(self): return [self.tot_loss.item()] + self.tot_mets
@property
def avg_stats(self): return [o/self.count for o in self.all_stats]
def __repr__(self):
if not self.count: return ""
return f"{'train' if self.in_train else 'valid'}: {self.avg_stats}"
def accumulate(self, run):
bn = run.xb.shape[0]
self.tot_loss += run.loss * bn
self.count += bn
for i,m in enumerate(self.metrics):
self.tot_mets[i] += m(run.pred, run.yb) * bn
class AvgStatsCallback(Callback):
def __init__(self, metrics):
self.train_stats,self.valid_stats = AvgStats(metrics,True),AvgStats(metrics,False)
def begin_epoch(self):
self.train_stats.reset()
self.valid_stats.reset()
def after_loss(self):
stats = self.train_stats if self.in_train else self.valid_stats
with torch.no_grad(): stats.accumulate(self.run)
def after_epoch(self):
print(self.train_stats)
print(self.valid_stats)
As this Callback alread tracks all our Stats, we can easily cerate a new Callback to save the best model based on validation loss at a given epoch and introduce early stopping. This can be done by inheriting from AvgStatsCallback
which already has handy begin_epoch
and after_loss
functions that we can use.
class Early_save(AvgStatsCallback):
def __init__(self, metrics,early_stopping_iter,loss_stop):
self.train_stats,self.valid_stats = AvgStats(metrics,True),AvgStats(metrics,False)
self.lowest_val_loss = float("inf")
self.cur_val_loss = float("inf")
self.early_stopping_array = deque(maxlen=3)
self.early_stopping_iter = 3
self.loss_stop = loss_stop
def save_model(self):
self.cur_val_loss, self.cur_val_acc = self.valid_stats.avg_stats
if self.cur_val_loss < self.lowest_val_loss :
self.lowest_val_loss = self.cur_val_loss
torch.save(learn.model.state_dict(),"best_model.pt")
print("Saving Model with val loss of :{:.4f}".format(self.lowest_val_loss))
def early_stopping(self):
self.early_stopping_array.append(self.cur_val_loss)
if (self.early_stopping_array.maxlen == len(self.early_stopping_array)):
diff = 0.0
for i in range(0,len(self.early_stopping_array)-1): #check diff between losses
diff += abs(self.early_stopping_array[i]-self.early_stopping_array[i+1])
diff /= (len(self.early_stopping_array)-1)
if(diff < self.loss_stop):
return "stop"
def after_epoch(self):
print(self.train_stats)
print(self.valid_stats)
self.save_model()
if self.early_stopping()=="stop":
return True
print(self.valid_stats.avg_stats[1])
It keeps track of the last 3 losses and will stop training if the loss difference is too small. It will also save a model that performs best on validation with the handy torch.save
function.
The Class now also keeps track of the lowest validation loss overall and can save the best model based on validation loss. Early stopping was implemented by tracking the last n elements, with n=early_stopping_iter
in this case. We are storing it in a deque data structures. The early_stopping
function will return a string that will then lead to our after_epoch
function returning True which will stop training, as we have :
if self('after_epoch'):
break
in our training loop.
Now we can finally call our methods and start trainig.
learn = Learner(*get_model(data), loss_func, data)
stats = AvgStatsCallback([accuracy])
run = Runner(cbs=stats)
run.fit(2, learn)
loss,acc = stats.valid_stats.avg_stats
Using partial we can create a Function that can create a callback function :
from functools import partial
acc_cbf = partial(AvgStatsCallback,accuracy)
run = Runner(cb_funcs=acc_cbf)
This way we can create Callback funcs easily, e.g. by using a list.
Annealing
We define two new callbacks: the Recorder to save track of the loss and our scheduled learning rate, and a ParamScheduler that can schedule any hyperparameter as long as it’s registered in the state_dict of the optimizer.
class Recorder(Callback):
def begin_fit(self): self.lrs,self.losses = [],[]
def after_batch(self):
if not self.in_train: return
self.lrs.append(self.opt.param_groups[-1]['lr'])
self.losses.append(self.loss.detach().cpu())
def plot_lr (self): plt.plot(self.lrs)
def plot_loss(self): plt.plot(self.losses)
class ParamScheduler(Callback):
_order=1
def __init__(self, pname, sched_func): self.pname,self.sched_func = pname,sched_func
def set_param(self):
for pg in self.opt.param_groups:
pg[self.pname] = self.sched_func(self.n_epochs/self.epochs)
def begin_batch(self):
if self.in_train: self.set_param()
def sched_lin(start, end):
def _inner(start, end, pos): return start + pos*(end-start)
return partial(_inner, start, end)
def annealer(f):
def _inner(start, end): return partial(f, start, end)
return _inner
@annealer
def sched_lin(start, end, pos): return start + pos*(end-start)
The Decorator annealer passes sched_lin in annealer and replaces sched_lin() definition with what annealer returns.
other scheduler funcs
@annealer
def sched_cos(start, end, pos): return start + (1 + math.cos(math.pi*(1-pos))) * (end-start) / 2
@annealer
def sched_no(start, end, pos): return start
@annealer
def sched_exp(start, end, pos): return start * (end/start) ** pos
def cos_1cycle_anneal(start, high, end):
return [sched_cos(start, high), sched_cos(high, end)]
#This monkey-patch is there to be able to plot tensors
torch.Tensor.ndim = property(lambda x: len(x.shape))
plot them
annealings = "NO LINEAR COS EXP".split()
a = torch.arange(0, 100)
p = torch.linspace(0.01,1,100)
fns = [sched_no, sched_lin, sched_cos, sched_exp]
for fn, t in zip(fns, annealings):
f = fn(2, 1e-2)
plt.plot(a, [f(o) for o in p], label=t)
plt.legend()
Combine Schedulers with a function :
def combine_scheds(pcts, scheds):
assert sum(pcts) == 1.
pcts = tensor([0] + listify(pcts))
assert torch.all(pcts >= 0)
pcts = torch.cumsum(pcts, 0)
def _inner(pos):
idx = (pos >= pcts).nonzero().max()
actual_pos = (pos-pcts[idx]) / (pcts[idx+1]-pcts[idx])
return scheds[idx](actual_pos)
return _inner
sched = combine_scheds([0.3, 0.7], [sched_cos(0.3, 0.6), sched_cos(0.6, 0.2)])
Here is an example: use 30% of the budget to go from 0.3 to 0.6 following a cosine, then the last 70% of the budget to go from 0.6 to 0.2, still following a cosine. Train for a long time @ high lr, then switch to lower lr with cosine 1 cycle schedules.
Now we can train with our Callbacks and cosine scheduling.
cbfs = [Recorder,
partial(AvgStatsCallback,accuracy),
partial(ParamScheduler, 'lr', sched)]
learn = create_learner(get_model_func(0.3), loss_func, data)
run = Runner(cb_funcs=cbfs)
run.fit(3, learn)
These Callbacks can also be used to move compute to our GPU !
