Fastai DL from the Foundations Lesson 1

The idea of this Repo is to manage and document the Code for the fastai Deep Learning from the foundations course and include Papers and Summaries of them when it is helpful to do so. The course focuses on building large components of the fastai library and Pytorch from scratch to allow deep understanding of the fastai and Pytorch frameworks, which enables the creation of own algorithms and makes debugging easier.

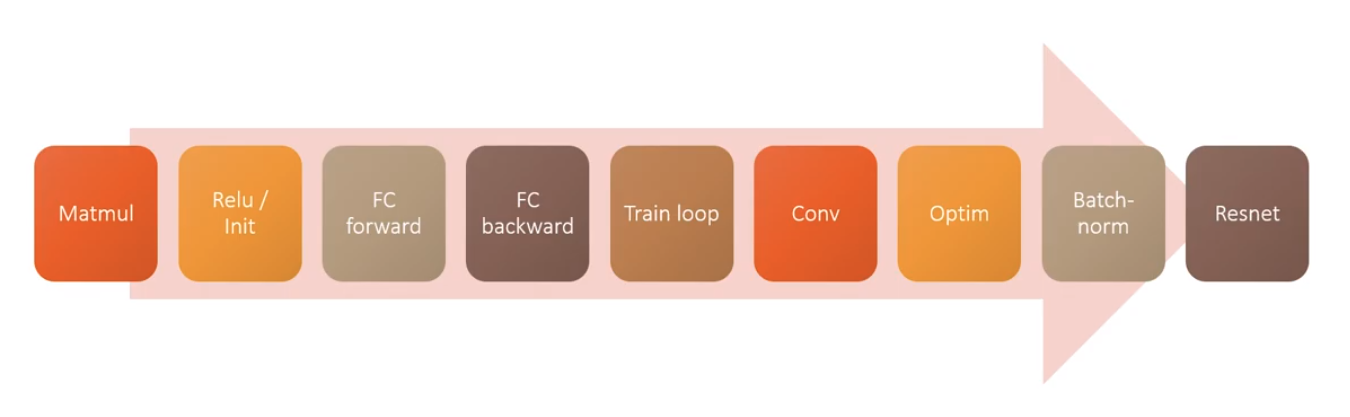

images

The Code is based on the code in the fastai course (v3), check out their repo which also includes part 1 which is realy focused on the practical side of things. Thank you to Jeremy, Rachel and the fastai Team for this great course.

In order to understand the material of part 2, you should be familiar with the following concepts, depending on each category :

Fundamentals

## Lesson 1

As we already know DL is mainly based on Linear Algebra, so let’s implement some simple Matrix Multiplication ! We already know that np.matmul can be used for this, bur let’s do it ourselves.

 def matmul(a,b):
    ar,ac = a.shape # n_rows * n_cols
    br,bc = b.shape
    assert ac==br #check for right dimensions => output dim is ar,bc
    c = torch.zeros(ar, bc)
    for i in range(ar):
        for j in range(bc):
            for k in range(ac): # or br
                c[i,j] += a[i,k] * b[k,j]
    return c

This is a very simple and inefficient implementation, which runs in 572 ms on my CPU with matrix dimensions 5x784 multiplied by 784x10. As expected the output array has 5 rows, if we used MNIST (50k) rows onw forward pass would take more than an hour which is unacceptable.

To improve this we can pass the Code down to a lower level language (Pytorch uses ATen a Tensor library for this). This can be done with elementwise multiplication (also works on Tensors with rank > 1) :

def matmul(a,b):
    ar,ac = a.shape
    br,bc = b.shape
    assert ac==br
    c = torch.zeros(ar, bc)
    for i in range(ar):
        for j in range(bc):
            c[i,j] = (a[i,:] * b[:,j]).sum() #row by column
    return c

images

This is essentially using the above formula and executing it in C code, with a runtime of : 802 µs ± 60.2 µs per loop (mean ± std. dev. of 7 runs, 10 loops each). Which is about 714 times faster than the first implementation ! Wooho we are done !

Broadcasting

Hold on not so fast ! We can still do better by removing the inner loop with Broadcasting. Broadcasting “broadcasts” the smaller array across the larger one, so they have compatible shapes, operations are vecorized so that loops are executed in C without any overhead. You can see the broadcasted version of a vector by calling :

<smaller_array>.expand_as(<larger_array>)

after expansion you can call :

<smaller_array>.storage()

and you will see that no additional memory is needed. With this our matmul looks like this :

def matmul(a,b):
    ar,ac = a.shape
    br,bc = b.shape
    assert ac==br
    c = torch.zeros(ar, bc)
    for i in range(ar):
        c[i]   = (a[i ].unsqueeze(-1) * b).sum(dim=0) #unsqueeze is used to unsqueeze a to rank 2
    return c

This code executes in 172 µs ± 14.3 µs per loop (mean ± std. dev. of 7 runs, 10 loops each). Which means we are 3325.81 faster than in the beginning, nice.

Einstein Summation

A compact representation to combine products and sums in a general way.

def matmul(a,b): return torch.einsum('ik,kj->ij', a, b)

This speeds up the code a little more (factor 3575 compared to the start), but more improvements can be made.

It uses this string “mini language” (sort of like regex) to specify the multiply, it is a little bit annoying and languages like Swift will hopefully allow us to get rid of this.

Pytorch Op

Pushes the code to BLAS, Hardware optimized code. We can not specify this with Pytorch, with Swift this could be optimized by the programmer more easily. A classic operation is the @ operator, it can do more than matmul (such as Batch wise, Tensor Reductions,…).

Matmul Summary

Algorithm Runtime on CPU Factor improvement
Naive Loops 572 ms 1
Loops + elementwise row/column multiply 802 µs 714
Brodacasting 172 µs 3326
Einstein Summation 160 µs 3575
Pytorch’s function (uses HW specific BLAS) 86 µs 6651

Now let’s use it to init our weights and code RELU

Init

We create a 2layer Net, with a hidden layer of size 50.

m is the 2nd dimension size of our input.

nh = 50
w1 = torch.randn(m,nh)/math.sqrt(m)
b1 = torch.zeros(nh)
w2 = torch.randn(nh,1)/math.sqrt(nh)
b2 = torch.zeros(1)

Randn gives us weights with mean 0 and std of 1. Just using random numbers the mean and std of our output vector will be way off. In order to avoid this we divide by sqrt(m), which will keep our output mean and std in bounds.

Another common initalization method is Xavier Initalization. Check out Andrej Karpathy’s lecture (starting at about 45:00) for a good explanation Even more advanced methods like Fixup initalization can be used. The authors of the paper are able to learn deep nets (up to 10k layers) as stable without normalization when using Fixup.

Problem : if the variance halves each layer, the activation will vanish after some time, leading to dead neurons.

Due to this the 2015 ImageNet ResNet winners, see 2.2 in the paper suggested this : Up to that point init was done with random weights from Gaussian distributions, which used fixed std deviations (for example 0.01). These methods however did not allow deeper models (more than 8 layers) to converge in most cases. Due to this, in the older days models like VGG16 had to train the first 8 layers at first, in order to then initalize the next ones. As we can imagine this takes longer to train, but also may lead to a poorer local optimum. Unfortunately the Xavier init paper does not talk about non-linarities, but should not be used with ReLu like functions, as the ReLu function will half the distribution (values smaller than zero are = 0) at every step.

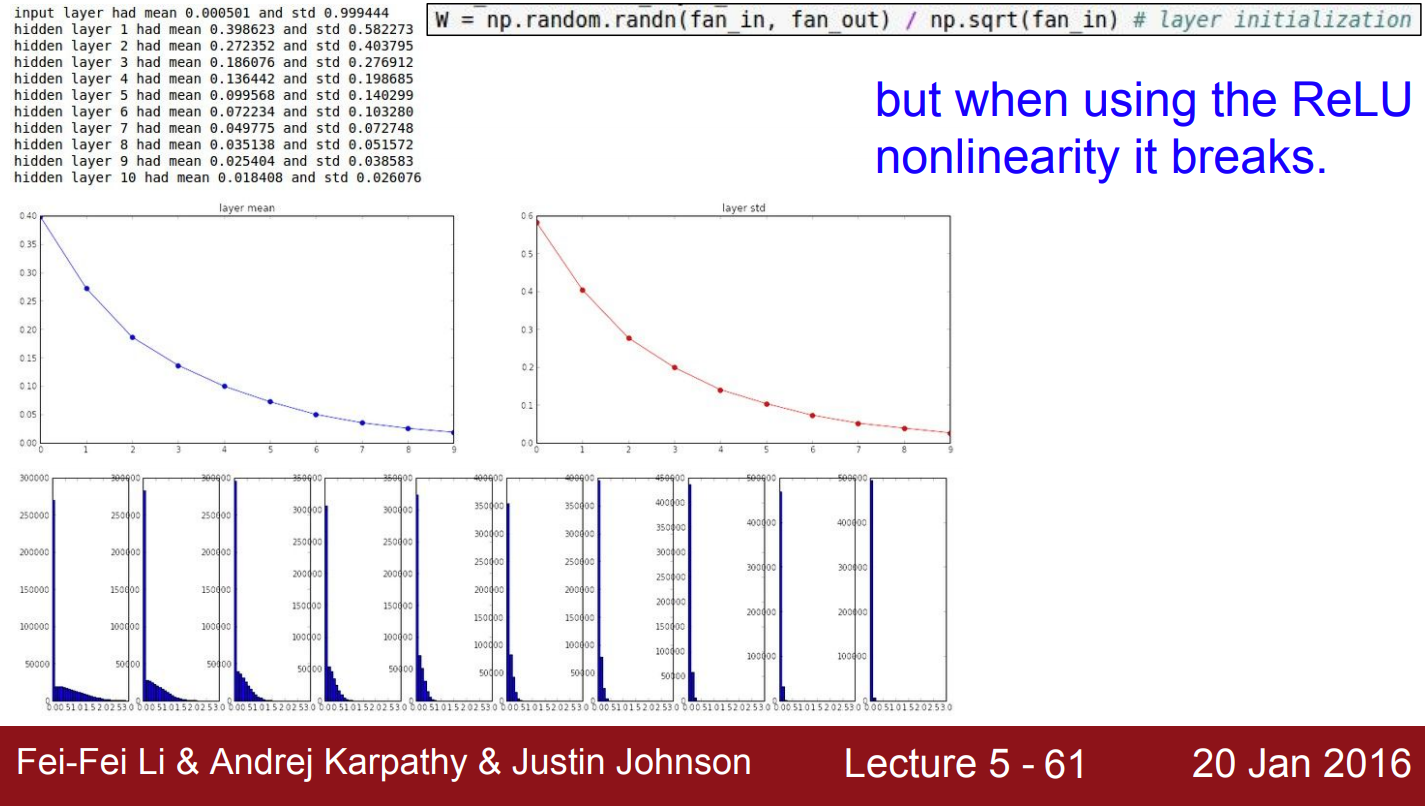

images

Looking at the distributions in the plots, you can see that the rapid decrease of the std. deviation leads to ReLu neurons activating less and less.

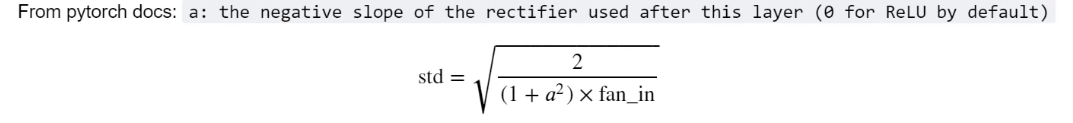

The Kaiming init paper investigates the variance at each layer and ends up suggesting the following :
images

essentially it just adds the 2 in the numerator to avoid the halfing of the variance due at each step.

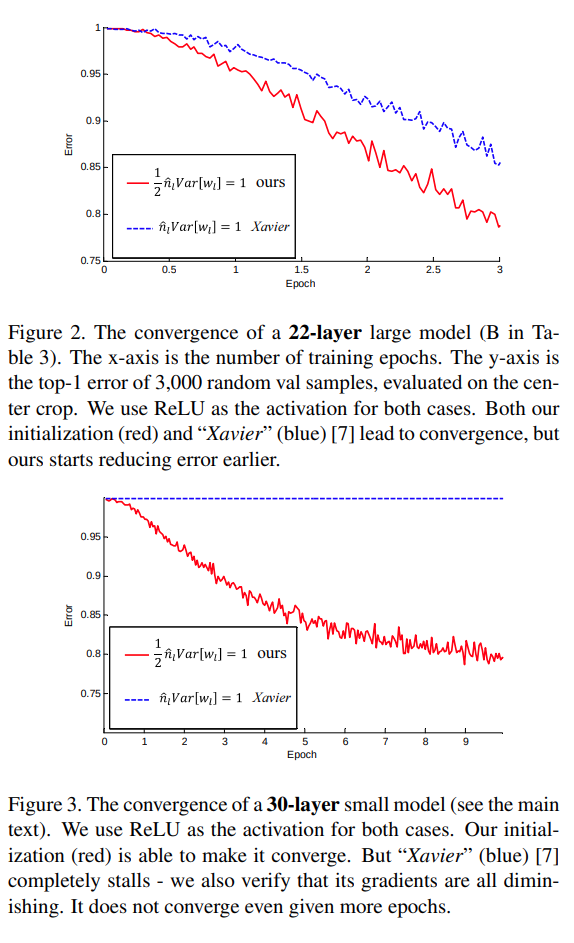

A direct comparison in the paper on a 22 layer model shows the benefit, even though Xavier converges as well, Kaiming init does so significantly faster. With a deeper 30-layer model the advantage of Kaiming is even more evident.
images

Kaiming init code :

w1 = torch.randn(m,nh)*math.sqrt(2/m)

ReLu can be implemented easily, it clamps values below 0 and is linear otherwise :

def relu(x): return x.clamp_min(0.)

Leaky ReLu avoids 0-ing the gradient by using a small negative slope below 0 (0.01 usually).

Therfore Kaiming init with ReLU can be implemented like this :

w1 = torch.randn(m,nh)*math.sqrt(2./m )
t1 = relu(lin(x_valid, w1, b1))
t1.mean(),t1.std()

Info

The Pytorch source code in the tutorial for torch.nn.Conv2d uses a kaiming init with :

init.kaiming_uniform_(self.weight, a=math.sqrt(5))

.sqrt(5) was an original bug from the Lua Torch and was fixed now !

Loss Function MSE

Now that we have done almost one forward pass,we still need to implement an error function. MSE Error, popular for regression tasks, can be implemented like this :

def mse(output, targ): return (output.squeeze(-1) - targ).pow(2).mean()

.squeeze() is used to get rid of a trainiling (,1) in this case.

Gradient and Backward Pass

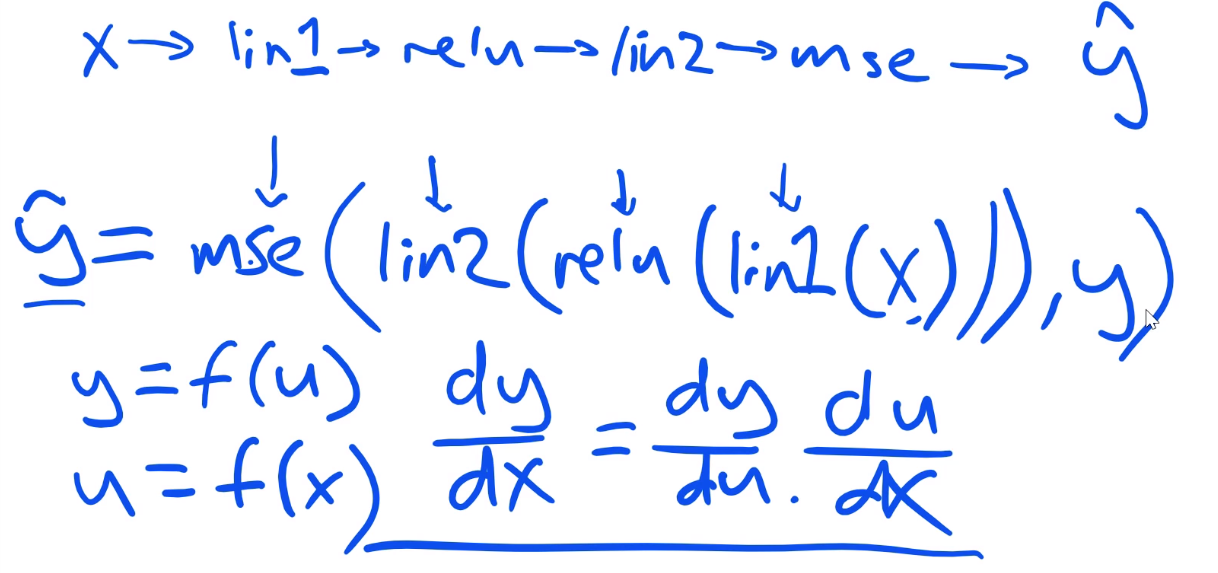

Mathematically the Backward Pass uses the chain rule to compute all of the gradients. images

In order to Backprop effectively, we need to calc the gradients of all of our components. In our case these are our loss, activation functions (only ReLu, which is easy) and our linear layers.

I suggest CS 231n by Andrej Karpathy for mathematical explanation of Backprop.

Let’s start with MSE :

def mse_grad(inp, targ):
    # grad of loss with respect to output of previous layer
    inp.g = 2. * (inp.squeeze() - targ).unsqueeze(-1) / inp.shape[0]

Relu :

def relu_grad(inp, out):
    # grad of relu with respect to input activations
    inp.g = (inp>0).float() * out.g

Very simple, the gradient is either 0 or 1. In the Leaky Relu Case it’s either -0.01 or 1.

Linear Layers

def lin_grad(inp, out, w, b):
    # grad of matmul with respect to input
    inp.g = out.g @ w.t() #matrix prod with the transpose
    w.g = (inp.unsqueeze(-1) * out.g.unsqueeze(1)).sum(0)
    b.g = out.g.sum(0)

Forward and Backward Pass

def forward_and_backward(inp, targ):
    # forward pass:
    l1 = inp @ w1 + b1
    l2 = relu(l1)
    out = l2 @ w2 + b2
    # we don't actually need the loss in backward!
    loss = mse(out, targ)

    # backward pass, just reverse order:
    mse_grad(out, targ)
    lin_grad(l2, out, w2, b2)
    relu_grad(l1, l2)
    lin_grad(inp, l1, w1, b1)

In order to check our results, we can use Pytorch :

We can control our results with Pytorch auto_grad() function

xt2 = x_train.clone().requires_grad_(True)
w12 = w1.clone().requires_grad_(True)
w22 = w2.clone().requires_grad_(True)
b12 = b1.clone().requires_grad_(True)
b22 = b2.clone().requires_grad_(True)

.requires_grad(True) turns a tensor in to an autograd so it can keep track of each step

Refactor

It’s always good to refactor our code. This can be done by creating classes and using our functions. One for forward and one for backward pass.

class Relu():
    def __call__(self, inp):
        self.inp = inp
        self.out = inp.clamp_min(0.)-0.5
        return self.out

    def backward(self): self.inp.g = (self.inp>0).float() * self.out.g

class Lin():
    def __init__(self, w, b): self.w,self.b = w,b

    def __call__(self, inp):
        self.inp = inp
        self.out = inp@self.w + self.b
        return self.out

    def backward(self):
        self.inp.g = self.out.g @ self.w.t()
        # Creating a giant outer product, just to sum it, is inefficient!
        self.w.g = (self.inp.unsqueeze(-1) * self.out.g.unsqueeze(1)).sum(0)
        self.b.g = self.out.g.sum(0)

class Mse():
    def __call__(self, inp, targ):
        self.inp = inp
        self.targ = targ
        self.out = (inp.squeeze() - targ).pow(2).mean()
        return self.out

    def backward(self):
        self.inp.g = 2. * (self.inp.squeeze() - self.targ).unsqueeze(-1) / self.targ.shape[0]

Lastly we create a model class.

class Model():
    def __init__(self, w1, b1, w2, b2):
        self.layers = [Lin(w1,b1), Relu(), Lin(w2,b2)]
        self.loss = Mse()

    def __call__(self, x, targ):
        for l in self.layers: x = l(x)
        return self.loss(x, targ)

    def backward(self):
        self.loss.backward()
        for l in reversed(self.layers): l.backward()

The execution times is to slow and we want to avoid the call() declarations so we define a module class

further Refactor

class Module():
    def __call__(self, *args):
        self.args = args
        self.out = self.forward(*args)
        return self.out

    def forward(self): raise Exception('not implemented')
    def backward(self): self.bwd(self.out, *self.args)

class Relu(Module):
    def forward(self, inp): return inp.clamp_min(0.)-0.5
    def bwd(self, out, inp): inp.g = (inp>0).float() * out.g

class Lin(Module):
    def __init__(self, w, b): self.w,self.b = w,b

    def forward(self, inp): return inp@self.w + self.b

    def bwd(self, out, inp):
        inp.g = out.g @ self.w.t()
        self.w.g = torch.einsum("bi,bj->ij", inp, out.g)
        self.b.g = out.g.sum(0)

class Mse(Module):
    def forward (self, inp, targ): return (inp.squeeze() - targ).pow(2).mean()
    def bwd(self, out, inp, targ): inp.g = 2*(inp.squeeze()-targ).unsqueeze(-1) / targ.shape[0]

class Model():
    def __init__(self):
        self.layers = [Lin(w1,b1), Relu(), Lin(w2,b2)]
        self.loss = Mse()

    def __call__(self, x, targ):
        for l in self.layers: x = l(x)
        return self.loss(x, targ)

    def backward(self):
        self.loss.backward()
        for l in reversed(self.layers): l.backward()

Now we can call the forward and backprop passes for our model easily.

Summary

To summarize we implemented nn.Linear and nn.Module and will be able to write the train loop next lesson !
